IP68 Ruggedized Industrial Keyboard With Touchpad Explosive Proof For Coal And Mine

Name: IP68 Ruggedized Industrial Keyboard With Touchpad Explosive Proof For Coal And Mine
Brand: IKB-MKB
Price: 1 USD

Wholesale IP68 Ruggedized Industrial Keyboard With Touchpad Explosive Proof For Coal And Mine from china suppliers

Brand Name : IKB-MKB

Model Number : K-TEK-B361TP-FN-EB-DT-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : to be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Stainless Steel

Keys : 85 keys (including 2 mouse buttons)

Key Traval : 0.45±0.05mm

Dimension : 361.0mm x 145.0mm x 31.5mm (L x W x H)

Key Life Span : more than 1 millions actuations

Protection Level : IP65 dynamic (front panel)

Keyword : Industrial keyboard with touchpad

Name : IP68 Ruggedized Industrial Keyboard With Trackball Explosive Proof For Coal And Mine

Contact Now

IP68 Ruggedized Industrial Keyboard With Trackball Explosive Proof For Coal And Mine

DESCRIPTION FOR INDUSTRIAL KEYBOARD WITH TOUCHPAD: 85 keys compact format IP68 sealed and ruggedized dynamic waterproof, dustproof, and explosion-proof stainless steel metal special keyboard, with explosion-proof safety barrier and built-in integrated metal-dome gold PCB control module, with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology. The overall keys are flat and no raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, with 0.45mm short stroke with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION, or optional mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

INDUSTRIAL KEYBOARD WITH TOUCHPAD DIMENSION: 361.0mm x 145.0mm x 31.5mm (L x W x H)

INDUSTRIAL KEYBOARD WITH TOUCHPAD MECHANICAL DATA
Actuator/keys	85 keys(including 2 mouse buttons)
Key top style	Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	0.45±0.05mm
Actuation Force	3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Front and Back Plate	Super quality brushed stainless steel
Switch life	more than 1 million of operations
Touch pad	sealed and ruggedized tough touchpad
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	2.50KGs
INDUSTRIAL KEYBOARD WITH TOUCHPAD ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Gold-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
INDUSTRIAL KEYBOARD WITH TOUCHPAD RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP68
Vandal resistant	IK09
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

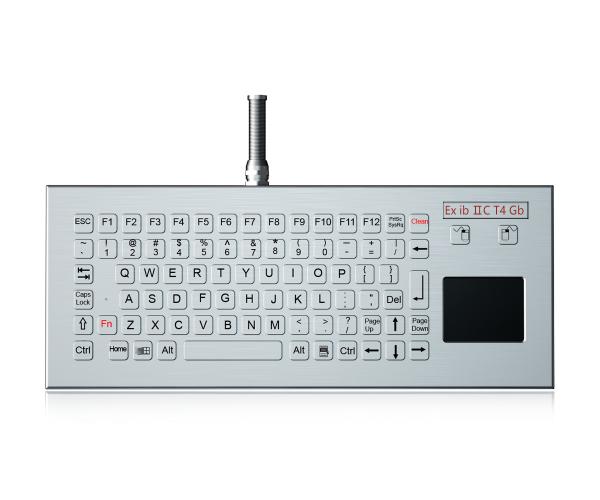

INDUSTRIAL KEYBOARD WITH TOUCHPAD ACTUAL PHOTOS

IP68 Ruggedized Industrial Keyboard With Touchpad Explosive Proof For Coal And Mine

KEY TECHNOLOGY CHINAD LIMITED
IP68 Ruggedized Industrial Keyboard With Touchpad Explosive Proof For Coal And Mine
